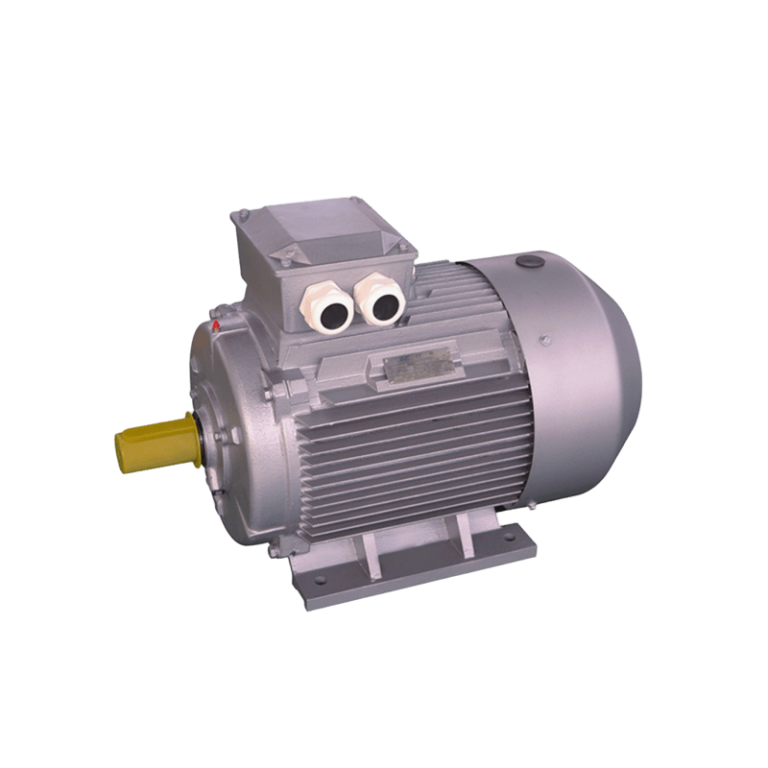

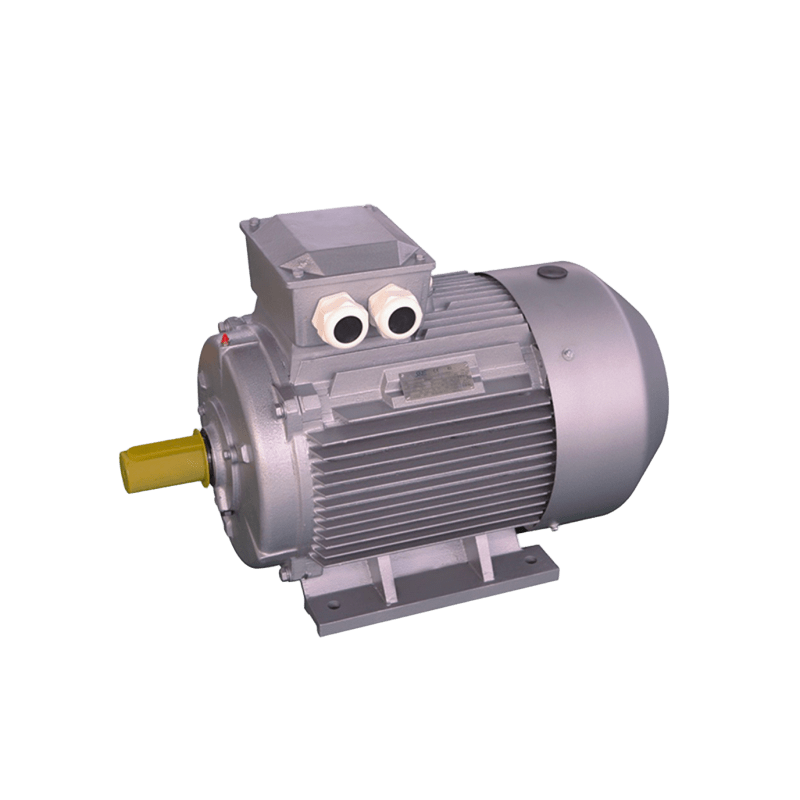

JS-AM-LV-IE5 (IEC)系列高效三相异步电动机

机座号：H80-355
容量：0.55~315kW
极数：2~8P
电压：1140V及以下

请求报价

该高效低压三相异步电动机符合IEC 60034-30中IE5等级和GB18613-2020中的一级能效标准。功率范围为0.55至315千瓦，机座号为H80至H355，电压范围最高至1140伏，极数为2至8。该电动机适用于驱动各种通用机械设备，广泛应用于石油、化工、医药和矿山行业。

技术参数
型号	功率		转速 r/min	电流		频率 Hz	效率％	СоsФ	额定转矩 Nm	堵转转矩	最大转矩	堵转电流
型号	kW	HP	转速 r/min	380V	400V	频率 Hz	效率％	СоsФ	额定转矩 Nm	额定转矩	额定转矩	额定电流
转速：3000转/分钟，2极，50赫兹
80M1-2P	0.75	1	2895	1.61	1.53	50	86.3	0.82	2.5	2.2	2.3	8.5
80M2-2P	1.1	1.5	2890	2.3	2.2	50	87.8	0.82	3.6	2.2	2.3	8.5
90S-2P	1.5	2	2900	3.1	2.9	50	88.9	0.84	4.9	2.2	2.3	9
90L-2P	2.2	3	2900	4.3	4.1	50	90.2	0.86	7.2	2.2	2.3	9
100L-2P	3	4	2900	5.8	5.5	50	91.1	0.87	9.9	2.2	2.3	9.5
112M-2P	4	5.5	2915	7.6	7.2	50	91.8	0.87	13.1	2.2	2.3	9.5
132S1-2P	5.5	7.5	2945	10.4	9.9	50	92.6	0.87	17.8	2	2.3	9.5
132S2-2P	7.5	10	2945	13.9	13.2	50	93.3	0.88	24.3	2	2.3	9.5
160M1-2P	11	15	2955	20.2	19.2	50	94	0.88	35.5	2	2.3	9.5
160M2-2P	15	20	2955	27.4	26.0	50	94.5	0.88	48.5	2	2.3	9.5
160L-2P	18.5	25	2955	33.7	32.0	50	94.9	0.88	59.8	2	2.3	9.5
180M-2P	22	30	2970	39.9	37.9	50	95.1	0.88	70.7	2	2.3	9.5
200L1-2P	30	40	2970	54.2	51.5	50	95.5	0.88	96.5	2	23	9
200L2-2P	37	50	2970	66.7	63.3	50	95.8	0.88	119.0	2	2.3	9
225M-2P	45	60	2975	80.9	76.9	50	96	0.88	144.5	2	2.3	9
250M-2P	55	75	2985	97.6	92.7	50	96.2	0.89	176.0	2	2.3	9
280S-2P	75	100	2980	132.7	126.0	50	96.5	0.89	240.4	1.8	2.3	8.5
280M-2P	90	125	2980	159.0	151.1	50	96.6	0.89	288.4	1.8	2.3	8.5
315S-2P	110	150	2985	194.0	184.3	50	96.8	0.89	351.9	1.8	2.3	8.5
315M-2P	132	180	2985	232.5	220.9	50	96.9	0.89	422.3	1.8	2.3	8.5
315L1-2P	160	220	2985	281.6	267.5	50	97	0.89	511.9	1.8	2.2	8.5
315L-2P	185	248	2985	325.3	309.0	50	97.1	0.89	591.9	1.8	2.2	8.5
315L2-2P	200	270	2985	351.3	333.7	50	97.2	0.89	639.9	1.8	2.2	8.5
355M1-2P	220	295	2985	382.1	363.0	50	97.2	0.9	703.9	1.6	2.2	8.5
355M-2P	250	340	2985	434.2	412.5	50	97.2	0.9	799.8	1.6	2.2	8.5
355L1-2P	280	375	2985	486.3	462.0	50	97.2	0.9	895.8	1.6	2.2	8.5
355L-2P	315	430	2985	547.1	519.7	50	97.2	0.9	1007.8	1.6	2.2	8.5
转速：1500转/分钟，4极，50赫兹
80M2-4P	0.75	1	1435	1.8	1.7	50	88.2	0.73	5.0	2.3	2.3	8.5
90S-4P	1.1	1.5	1445	2.5	2.4	50	89.5	0.74	7.3	2.3	2.3	8.5
90L-4P	1.5	2	1445	3.4	3.2	50	90.4	0.75	9.9	2.3	2.3	9.0
100L1-4P	2.2	3	1460	4.7	4.5	50	91.4	0.78	14.4	2.3	2.3	9.0
100L2-4P	3	4	1460	6.3	6.0	50	92.1	0.79	19.6	2.3	2.3	9.5
112M-4P	4	5.5	1460	8.3	7.9	50	92.8	0.79	26.2	2.3	2.3	9.5
132S-4P	5.5	7.5	1475	11.3	10.8	50	93.4	0.79	35.6	2.0	2.3	9.5
132M-4P	7.5	10	1475	15.2	14.4	50	94.0	0.8	48.6	2.0	2.3	9.5
160M-4P	11	15	1475	21.5	20.5	50	94.6	0.82	71.2	2.0	2.3	9.5
160L-4P	15	20	1475	28.9	27.4	50	95.1	0.83	97.1	2.0	2.3	9.5
180M-4P	18.5	25	1480	35.1	33.4	50	95.3	0.84	119.4	2.0	2.3	9.5
180L-4P	22	30	1480	41.7	39.5	50	95.5	0.84	142.0	2.0	2.3	9.5
200L-4P	30	40	1485	56.6	53.6	50	95.9	0.84	192.9	2.0	2.3	9.0
225S-4P	37	50	1485	69.6	66.2	50	96.1	0.84	237.9	2.0	2.3	9.0
225M-4P	45	60	1485	84.5	80.3	50	96.3	0.84	289.4	2.0	2.3	9.0
250M-4P	55	75	1485	10L9	96.4	50	96.5	0.85	353.7	2.0	2.3	9.0
280S-4P	75	100	1490	137.0	130.2	50	96.7	0.86	480.7	2.0	2.3	8.5
280M-4P	90	125	1490	162.2	153.5	50	96.9	0.87	576.8	2.0	2.3	8.5
315S-4P	110	150	1490	195.8	186.0	50	97.0	0.88	705,0	1.8	2.2	8.5
315M-4P	132	180	1490	234.7	223.0	50	97.1	0.88	846.0	1.8	2.2	8.5
315L1-4P	160	220	1490	281.0	267.0	50	97.2	0.89	1025.5	1.8	2.2	8.5
315L2-4P	185	248	1490	324.6	308.4	50	97.3	0.89	1185.7	1.8	2.2	8.5
315L2-4P	200	270	1490	350.5	333.0	50	97.4	0.89	1281.9	1.8	2.2	8.5
355M1-4P	220	295	1490	385.6	366.3	50	97.4	0.89	1410.1	1.8	2.2	8.5
355M-4P	250	340	1490	438.2	416.3	50	97.4	0.89	1602.3	1.8	2.2	8.5
355L1-4P	280	375	1490	490.8	466.2	50	97.4	0.89	1794.6	1.8	2.2	8.5
355L-4P	315	430	1490	552.1	524.5	50	97.4	0.89	2019.0	1.8	2.2	8.5
转速：1000转/分钟，6极，50赫兹
90S-6P	0.75	1	960	1.9	1.8	50	85.7	0.69	7.5	2.1	2.1	7.5
90L-6P	1.1	1.5	960	2.8	2.6	50	87.2	0.69	10.9	2.1	2.1	7.5
100L-6P	1.5	2	965	3.7	3.5	50	88.4	0.7	14.8	2.1	2.1	7.5
112M-6P	2.2	3	970	5.3	5.1	50	89.7	0.7	21.7	2.1	2.1	7.5
132S-6P	3	4	975	7.2	6.9	50	90.6	0.7	29.4	2.0	2.1	7.5
132M1-6P	4	5.5	975	9.4	8.9	50	91.4	0.71	39.2	2.0	2.1	8.0
132M-6P	5.5	7.5	975	12.8	12.3	50	92.2	0.71	53.9	2.0	2.1	8.0
160M-6P	7.5	10	980	16.4	15.5	50	92.9	0.75	73.1	2.0	2.1	8.0
160L-6P	11	15	980	23.5	22.3	50	93.7	0.76	107.2	2.0	2.1	8.5
180L-6P	15	20	985	30.6	29.1	50	94.3	0.79	145.4	2.0	2.1	8.5
200L1-6P	18.5	25	985	37.6	35.9	50	94.6	0.79	179.4	2.0	2.1	8.5
200L2-6P	22	30	985	44.0	41.8	50	94.9	0.8	213.3	2.0	2.1	8.5
225M-6P	30	40	985	59.0	56.0	50	95.3	0.81	290.9	2.0	2.1	8.3
250M-6P	37	50	990	71.7	68.1	50	95.6	0.82	356.9	2.0	2.1	8.3
280S-6P	45	60	990	87.0	82.7	50	95.8	0.82	434.1	2.0	2.0	8.5
280M-6P	55	75	990	104.9	99.6	50	96.0	0.83	530.6	2.0	2.0	8.5
315S-6P	75	100	990	142.6	135.4	50	96.3	0.83	723.5	1.6	2.0	8.0
315M-6P	90	125	990	168.7	160.3	50	96.5	0.84	868.2	1.6	2.0	8.0
315L1-6P	110	150	990	206.0	195.7	50	96.6	0.84	1061.1	1.6	2.0	8.0
315L2-6P	132	180	990	243.7	231.6	50	96.8	0.85	1273.3	1.6	2.0	8.0
355M1-6P	160	220	990	295.1	280.4	50	96.9	0.85	1543.4	1.6	2.0	8.0
355M-6P	185	248	991	340.9	323.9	51	97.0	0.85	1782.8	1.6	2.0	8.0
355M2-6P	200	270	992	368.5	350.1	52	97.0	0.85	1925.4	1.6	2.0	8.0
355L1-6P	220	295	993	405.4	385.1	53	97.0	0.85	2115.8	1.6	2.0	8.0
355L-6P	250	340	994	460.7	437.7	54	97.0	0.85	2401.9	1.6	2.0	8.0
转速：750转/分钟，8极，50赫兹
100L1-8P	0.75	1.5	705	2.1	2.1	50	82.0	0.65	10.2	2.0	2.0	7.0
100L2-8P	1.1	2	705	3.0	2.9	50	84.0	0.66	14.9	2.0	2.0	7.0
112M-8P	1.5	3	710	3.9	3.8	50	85.5	0.68	20.3	1.8	2.0	7.0
132S-8P	2.2	4	725	5.6	5.4	50	87.2	0.69	29.2	1.8	2.0	7.5
132M-8P	3	5.5	725	7.5	7.2	50	88.4	0.69	39.8	1.8	2.0	7.8
160M1-8P	4	7.5	725	9.7	9.3	50	89.4	0.7	52.7	1.8	2.0	7.9
160M2-8P	5.5	10	725	13.0	12.5	50	90.4	0.71	72.4	1.8	2.0	8.1
160L-8P	7.5	15	725	17.1	16.4	50	91.3	0.73	98.8	1.8	2.0	7.8
180L-8P	11	20	735	24.8	23.7	50	92.2	0.73	142.9	1.8	2.0	7.9
200L-8P	15	25	735	33.2	31.7	50	92.9	0.74	194.9	1.8	2.0	8.0
225S-8P	18.5	30	740	40.7	38.8	50	93.3	0.74	240.4	1.8	2.0	8.1
225M-8P	22	40	740	47.6	45.4	50	93.6	0.75	285.9	1.8	2.0	8.3
250M-8P	30	50	740	63.7	60.7	50	94.1	0.76	387.2	1.8	2.0	7.9
280S-8P	37	60	740	77.3	73.5	50	94.4	0.77	477.5	1.8	2.0	7.9
280M-8P	45	75	740	93.8	89.2	50	94.7	0.77	580.7	1.8	2.0	7.9
315S-8P	55	100	740	111.5	105.9	50	94.9	0.79	709.8	1.6	2.0	8.2
315M-8P	75	125	740	151.4	143.6	50	95.3	0.79	967.9	1.6	2.0	7.6
315L1-8P	90	150	740	179.0	169.9	50	95.5	0.8	1161.5	1.6	2.0	7.7
315L2-8P	110	180	740	215.6	207.0	50	95.7	0.81	1419.6	1.6	2.0	7.7
355M1-8P	132	220	740	258.2	247.9	50	95.9	0.81	1692.1	1.6	2.0	7.7
355M2-8P	160	270	740	312.3	296.1	50	96.1	0.81	2051.0	1.6	2.0	7.7
355L1-8P	185	248	741	360.7	296.1	50	96.2	0.81	2051.0	1.6	2.0	7.8
355L-8P	200	340	740	389.6	369.0	50	96.3	0.81	2563.8	1.6	2.0	7.8
315S-10P	45	75	590	99.6	94.6	50	91.5	0.75	728.4	1.5	2.0	6.2
315M-10P	55	100	590	121.1	115.1	50	92	0.75	890.3	1.5	2.0	6.2
315L1-10P	75	125	590	162.1	154.0	50	92.5	0.76	1214.0	1.5	2.0	6.2
315L2-10P	90	150	590	191.0	181.4	50	93	0.77	1456.8	1.5	2.0	6.2
355M1-10P	110	180	590	229.9	218.4	50	93.2	0.78	1780.5	1.3	2.0	6
355M2-10P	132	220	590	275.0	261.2	50	93.5	0.78	2136.6	1.3	2.0	6
355L-10P	160	270	590	333.3	316.7	50	93.5	0.78	2589.8	1.3	2.0	6
