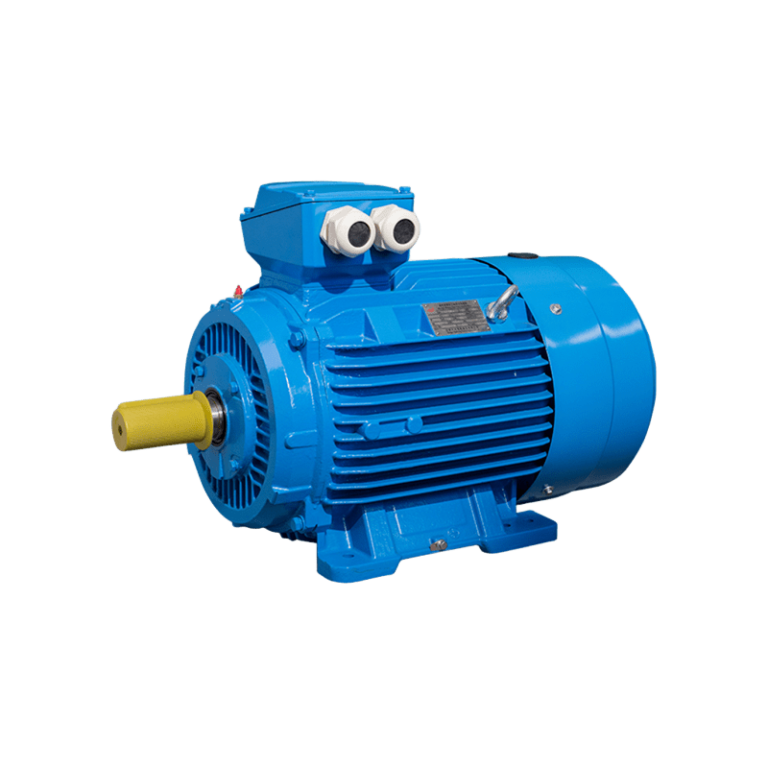

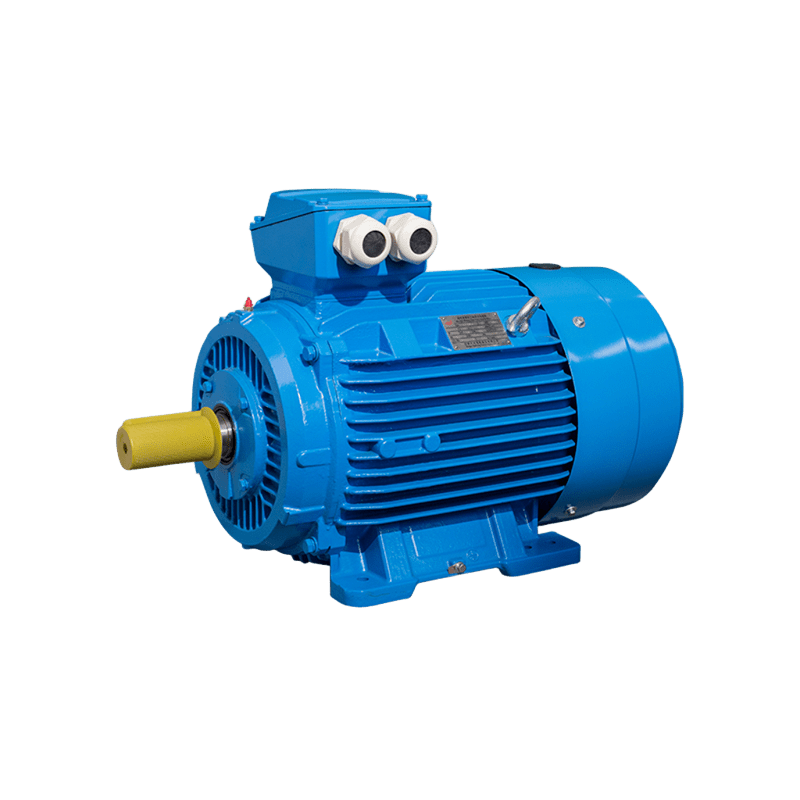

JS-AM-LV-IE4 (IEC)系列高效三相异步电动机

机座号：H63~55
容量：0.12-450kw
极数：2~12P
电压：1000V及以下

请求报价

该高效低压三相异步电动机符合IEC 60034-30中IE4等级和GB18613-2020中的二级能效标准（适用于2至8极配置）。功率范围为0.12至450千瓦，机座号为H63至H355，电压范围最高至1000伏。该电动机适用于驱动各种机械设备，广泛应用于石油、化工、医药和矿山行业。

技术参数
型号	功率		转速 r/min	电流		频率 Hz	效率％	СоsФ	额定转矩 Nm	堵转转矩	最大转矩	堵转电流
型号	kW	HP	转速 r/min	380V	400V	频率 Hz	效率％	СоsФ	额定转矩 Nm	额定转矩	额定转矩	额定电流
转速：3000转/分钟，2极，50赫兹
80M1-2P	0.75	1	2815	1.64	1.56	50	83.5	0.83	2.5	2.2	2.3	8.5
80M2-2P	1.1	1.5	2890	2.4	2.2	50	85.2	0.83	3.6	2.2	2.3	8.5
90S-2P	1.5	2	2900	3.1	2.9	50	86.5	0.85	4.9	2.2	2.3	9
90L-2P	2.2	3	2900	4.4	4.2	50	88	0.86	7.2	2.2	2.3	9
100L-2P	3	4	2900	5.9	5.6	50	89.1	0.87	9.9	2.2	2.3	9.5
112M-2P	4	5.5	2915	7.7	7.3	50	90	0.88	13.1	2.2	2.3	9.5
132S1-2P	5.5	7.5	2945	10.4	9.9	50	90.9	0.88	17.8	2	2.3	9.5
132S2-2P	7.5	10	2945	14.0	13.3	50	91.7	0.89	24.3	2	2.3	9.5
160M1-2P	11	15	2955	20.3	19.3	50	92.6	0.89	35.5	2	2.3	9.5
160M2-2P	15	20	2955	27.4	26.1	50	93.3	0.89	48.5	2	2.3	9.5
160L-2P	18.5	25	2955	33.7	32.0	50	93.7	0.89	59.8	2	2.3	9.5
180M-2P	22	30	2970	40.0	38.0	50	94	0.89	70.7	2	2.3	9.5
200L1-2P	30	40	2970	54.2	51.5	50	94.5	0.89	96.5	2	2.3	9
200L2-2P	37	50	2970	66.6	63.3	50	94.8	0.89	119.0	2	2.3	9
225M-2P	45	60	2975	80.9	76.8	50	95	0.89	144.5	2	2.3	9
250M-2P	55	75	2985	98.5	93.6	50	95.3	0.89	176.0	2	2.3	9
280S-2P	75	100	2980	133.9	127.2	50	95.6	0.89	240.4	1.8	2.3	8.5
280M-2P	90	125	2980	160.4	152.4	50	95.8	0.89	288.4	1.8	2.3	8.5
315S-2P	110	150	2985	195.6	185.8	50	96	0.89	351.9	1.8	2.3	8.5
315M-2P	132	180	2985	234.2	222.5	50	96.2	0.89	422.3	1.8	2.3	8.5
315L1-2P	160	220	2985	283.6	269.5	50	96.3	0.89	511.9	1.8	2.2	8.5
315L2-2P	200	270	2985	353.8	336.1	50	96.5	0.89	639.9	1.8	2.2	8.5
355M-2P	250	340	2985	432.5	410.9	50	96.5	0.91	799.8	1.6	2.2	8.5
355L-2P	315	430	2985	545.0	517.8	50	96.5	0.91	1007.8	1.6	2.2	8.5
转速：1500转/分钟，4极，50赫兹
80M2-4P	0.75	1	1435	1.8	1.7	50	85.7	0.74	5.0	2.3	2.3	8.5
90S-4P	1.1	1.5	1445	2.6	2.4	50	87.2	0.75	7.3	2.3	2.3	8.5
90L-4P	1.5	2	1445	3.4	3.2	50	88.2	0.76	9.9	2.3	2.3	9.0
100L1-4P	2.2	3	1460	4.7	4.5	50	89.5	0.79	14.4	2.3	2.3	9.0
100L2-4P	3	4	1460	6.3	6.0	50	90.4	0.80	19.6	2.3	2.3	9.5
112M-4P	4	5.5	1460	8.3	7.9	50	91	0.80	26.2	2.3	2.3	9.5
132S-4P	5.5	7.5	1475	11.4	10.8	50	91.9	0.80	35.6	2.0	2.3	9.5
132M-4P	7.5	10	1475	15.2	14.4	50	92.6	0.81	48.6	2.0	2.3	9.5
160M-4P	11	15	1475	21.6	20.5	50	93.3	0.83	71.2	2.0	2.3	9.5
160L-4P	15	20	1475	28.9	27.4	50	93.9	0.84	97.1	2.0	2.3	9.5
180M-4P	18.5	25	1480	35.1	33.3	50	94.2	0.85	119.4	2.0	2.3	9.5
180L-4P	22	30	1480	41.6	39.5	50	94.5	0.85	142.0	2.0	2.3	9.5
200L-4P	30	40	1485	56.5	53.6	50	94.9	0.85	192,9	2.0	2.3	9.0
225S-4P	37	50	1485	69.5	66.0	50	95.2	0.85	237.9	2.0	2.3	9.0
225M-4P	45	60	1485	84.3	80.1	50	95.4	0.85	289.4	2.0	2.3	9.0
250M-4P	55	75	1485	101.5	96.4	50	95.7	0.86	353.7	2.0	2.3	9.0
280S-4P	75	100	1490	136.4	129.6	50	96	0.87	480.7	2.0	2.3	8.5
280M-4P	90	125	1490	161.7	153.5	50	96.1	0.88	576.8	2.0	2.3	8.5
315S-4P	110	150	1490	195.0	185.2	50	96.3	0.89	705.0	1.8	2.2	8.5
315M-4P	132	180	1490	233.8	222.1	50	96.4	0.89	846.0	1.8	2.2	8.5
315L1-4P	160	220	1490	279.6	265.6	50	96.6	0.90	1025.5	1.8	2.2	8.5
315L2-4P	200	270	1490	349.2	331.7	50	96.7	0.90	1281.9	1.8	2.2	8.5
355M-4P	250	340	1490	436.4	414.6	50	96.7	0.90	1602.3	1.8	2.2	8.5
355L-4P	315	430	1490	549.9	522.4	50	96.7	0.90	2019.0	1.8	2.2	8.5
转速：1000转/分钟，6极，50赫兹
90S-6P	0.75	1	955	2.0	1.9	50	83.1	0.70	7.5	2.1	2.1	7.5
90L-6P	1.1	1.5	955	2.8	2.7	50	84.1	0.70	11.0	2.1	2.1	7.5
100L-6P	1.5	2	960	3.7	3.5	50	86.2	0.71	14.9	2.1	2.1	7.5
112M-6P	2.2	3	970	5.4	5.1	50	87.1	0.71	21.7	2.1	2.1	7.5
132S-6P	3	4	975	7.2	6.9	50	88.7	0.71	29.4	2.0	2.1	7.5
132M1-6P	4	5.5	975	9.4	8.9	50	89.7	0.72	39.2	2.0	2.1	8.0
132M2-6P	5.5	7.5	975	13.0	12.3	50	89.5	0.72	53.9	2.0	2.1	8.0
160M-6P	7.5	10	980	16.6	15.8	50	90.2	0.76	73.1	2.0	2.1	8.0
160L-6P	11	15	980	23.7	22.5	50	91.5	0.77	107.2	2.0	2.1	8.5
180L-6P	15	20	985	30.8	29.3	50	92.5	0.80	145.4	2.0	2.1	8.5
200L1-6P	18.5	25	985	37.7	35.9	50	93.1	0.80	179.4	2.0	2.1	8.5
200L2-6P	22	30	985	43.9	41.7	50	93.9	0.81	213.3	2.0	2.1	8.5
225M-6P	30	40	985	58.9	56.0	50	94.3	0.82	290.9	2.0	2.1	8.3
250M-6P	37	50	990	71.6	68.0	50	94.6	0.83	356.9	2.0	2.1	8.3
280S-6P	45	60	990	86.8	82.5	50	94.9	0.83	434.1	2.0	2.0	8.5
280M-6P	55	75	990	104.5	99.3	50	95.2	0.84	530.6	2.0	2.0	8.5
315S-6P	75	100	990	142.2	135.1	50	95.4	0.84	723.5	1.6	2.0	8.0
315M-6P	90	125	990	168.3	159.9	50	95.6	0.85	868.2	1.6	2.0	8.0
315L1-6P	110	150	990	205.7	195.4	50	95.6	0.85	1061.1	1.6	2.0	8.0
315L2-6P	132	180	990	243.4	231.3	50	95.8	0.86	12733	1.6	2.0	8.0
355M1-6P	160	220	990	294.4	279.7	50	96	0.86	1543.4	1.6	2.0	8.0
355M2-6P	200	270	990	367.7	349.3	50	96.1	0.86	1929.3	1.6	2.0	8.0
355L-6P	250	340	990	459.6	436.6	50	96.1	0.86	2411.6	1.6	2.0	8.0
转速：750转/分钟，8极，50赫兹
100L1-8P	0.75	1.5	705	2.2	2.1	50	78.4	0.66	10.2	2.0	2.0	7.0
100L2-8P	1.1	2	705	3.1	2.9	50	80.8	0.67	14.9	2.0	2.0	7.0
112M-8P	1.5	3	705	4.0	3.8	50	82.6	0.69	20.3	1.8	2.0	7.0
132S-8P	2.2	4	720	5.7	5.4	50	84.5	0.70	29.2	1.8	2.0	7.5
132M-8P	3	5.5	720	7.6	7.2	50	85.9	0.70	39.8	1.8	2.0	7.8
160M1-8P	4	7.5	725	9.8	9.3	50	87.1	0.71	52.7	1.8	2.0	7.9
160M2-8P	5.5	10	725	13.1	12.5	50	88.3	0.72	72.4	1.8	2.0	8.1
160L-8P	7.5	15	725	17.2	16.4	50	893	0.74	98.8	1.8	2.0	7.8
180L-8P	11	20	735	25.0	23.7	50	90.4	0.74	142.9	1.8	2.0	7.9
200L-8P	15	25	735	33.3	31.7	50	91.2	0.75	194.9	1.8	2.0	8.0
225S-8P	18.5	30	735	40.9	38.8	50	91.7	0.75	240.4	1.8	2.0	8.1
225M-8P	22	40	735	47.8	45.4	50	92.1	0.76	285.9	1.8	2.0	8.3
250M-8P	30	50	740	63.9	60.7	50	92.7	0.77	387.2	1.8	2.0	7.9
280S-8P	37	60	740	77.4	73.5	50	93.1	0.78	477.5	1.8	2.0	7.9
280M-8P	45	75	740	93.8	89.2	50	93.4	0.78	580.7	1.8	2.0	7.9
315S-8P	55	100	740	111.5	105.9	50	93.7	0.80	709.8	1.6	2.0	8.2
315M-8P	75	125	740	151.2	143.6	50	94.2	0.80	967.9	1.6	2.0	7.6
315L1-8P	90	150	740	178.8	169.9	50	94.4	0.81	1161.5	1.6	2.0	7.7
315L2-8P	110	180	740	217.9	207.0	50	94.7	0.81	1419.6	1.6	2.0	7.7
355M1-8P	132	220	745	260.9	247.9	50	94.9	0.81	1692.1	1.6	2.0	7.7
355M2-8P	160	270	745	311.7	296.1	50	95.1	0.82	2051.0	1.6	2.0	7.7
355L-8P	200	340	745	388.4	369.0	50	95.4	0.82	2563.8	1.6	2.0	7.8
315S-10P	45	75	590	99.6	94.6	50	91.5	0.75	728.4	1.5	2.0	6.2
315M-10P	55	100	590	121.1	115.1	50	92	0.75	890.3	1.5	2.0	6.2
315L1-10P	75	125	590	162.1	154.0	50	92.5	0.76	1214.0	1.5	2.0	6.2
315L2-10P	90	150	590	191.0	181,4	50	93	0.77	1456.8	1.5	2.0	6.2
355M1-10P	110	180	590	229.9	218.4	50	93.2	0.78	1780.5	1.3	2.0	6
355M2-10P	132	220	590	275.0	261.2	50	93.5	0.78	2136.6	1.3	2.0	6
355L-10P	160	270	590	333.3	316.7	50	93.5	0.78	2589.8	1.3	2.0	6
