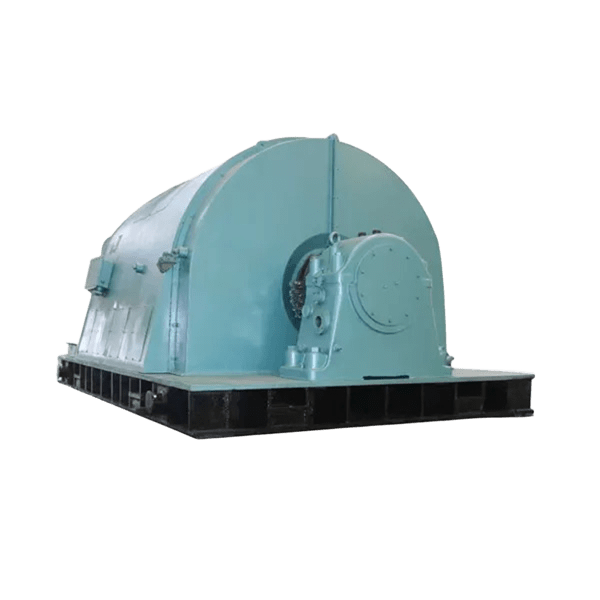

Three-phase synchronous electric motor, JM-SM series

Power: 2500kW-9000kW
Voltage: 6kV, 10kV and various special voltages
Number of poles: 4P-8P

Request a price

This three-phase synchronous motor is designed for driving fans, pumps, compressors, and other general equipment in industries such as petroleum, chemical, power, metallurgy, and coal. The motor complies with GB755-2000 and IEC standards, offering high efficiency, low noise, low vibration, high reliability, and ease of installation and maintenance. The rated frequency is 50 Hz, with a power factor of 0.9 (leading).
The motor features an IP44 protection level (excluding slip rings), structure and installation type IM7311, cooling methods IC37 or IC91W, and an S1 (continuous) duty cycle. The stator uses F-class insulation treated with VPI vacuum pressure impregnation technology, ensuring excellent insulation performance. Suitable for environments free of acidic and alkaline corrosive gases.

Technical data
Model	Rated values				cosφ	Efficiency %	Locked-rotor current	Locked-rotor torque	Pull-in torque	Pull-out torque	Rated excitation voltage, V	Rated excitation current, A	Weight, kg
	Power KW	Voltage V	Current A	Speed r/min			Locked-rotor current	Locked-rotor torque	Pull-in torque	Pull-out torque
	Power KW	Voltage V	Current A	Speed r/min			Rated current	Rated torque	Rated torque	Rated torque
1600-4/1180	1600	6	179	1500	0.9	95.7	3.9	1.4	0.85	1.95	32.2	331.6	9.9
2000-4/1430	2000	6	224	1500	0.9	95.5	4.46	1.35	0.95	2.11	33.5	372	13.9
2200-4/1430	2200	10	148	1500	0.9	95.5	4.74	15	1	2.12	36	366	14.3
2500-4/1430	2500	10	168	1500	0.9	95.6	4.66	1.55	0.98	2	39	366	14.8
2800-4/1430	2800	6	312	1500	0.9	96.2	3.9	1.26	0.8	1.87	35	400	15
4000-4/1430	4000	10	267	1500	0.9	96.9	6.5	2.22	1.44	1.87	30	519	16.3
2200-6/1730	2200	6	246	1000	0.9	95.6	4.74	1.46	0.96	2.4	45	409	17
3200-6/1760	3200	10	214	1000	0.9	96.1	6.55	1.8	1.59	2.24	48	402	21.5
5400-9/1730	5400	10	359	1000	0.9	90	4.8	1.95	0.88	2	64	419	29.9
7000-6/1730	7000	10	463	1000	0.9	97	4.8	1.8	0.82	0.9	93	407	32
