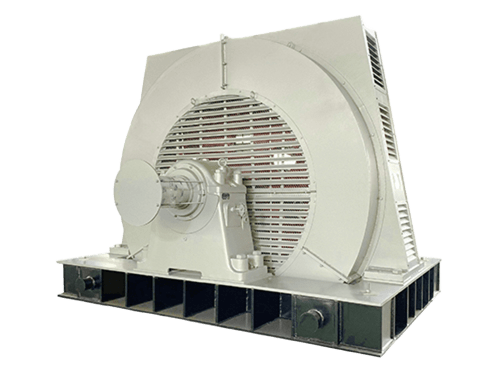

Three-phase synchronous electric motor for air compressors, JM-SM-K series

Power: 250kW-3600kW
Voltage: 6kV, 10kV and various special voltages
Number of poles: 8P-40P

Request a price

This three-phase synchronous motor is specifically designed for use with reciprocating compressors. It complies with GB755, JB/T8667.1, and IEC standards, offering a compact design, high efficiency, low noise, minimal vibration, and high reliability with ease of maintenance. The motor operates at rated voltages of 3000V, 6000V, or 10,000V with a frequency of 50 Hz (60 Hz options available upon request). The duty cycle is S1 (continuous), with a power factor of 0.9 (leading).
The motor can be configured with or without a shaft and pedestal bearings, depending on the compressor structure. The protection class is IP00, with upgrades available, and cooling is IC01 (open type) or other options upon request. Stator and rotor windings use B-class or F-class insulation materials, treated with VPI technology for excellent insulation performance, moisture resistance, and extended service life. Temperature monitoring devices can be installed on critical components upon user request.
This motor is primarily used for driving reciprocating air compressors and can also be applied to pumps, fans, and other general-purpose machinery.

Technical data
Model	Rated values				cosφ	Efficiency %	Locked-rotor current	Locked-rotor torque	Rated torque	Pull-out torque	Flywheel moment of inertia (kN-m²)	Weight Kg
	Power KW	Voltage V	Current A	Speed r/min			Locked-rotor current	Locked-rotor torque	Rated torque	Pull-out torque
	Power KW	Voltage V	Current A	Speed r/min			Rated current	Rated torque	Pull-in torque	Rated torque
250-10/990	250	6	29	600	0.9	92.5	4.54	1.37	0.77	2.1	2	25
250-10/10	250	6	29.1	600	0.9	92	5.08	0.99	1.01	2.42	3.5	4.3
250-12/1180	250	6	29.1	500	0.9	92	4.82	1.76	0.89	2.2	5	4.9
320-12/1180	320	6	36.8	500	0.9	92.4	5.73	1.2	1.15	2.46	0	45
320-12/1180	320	6	36.8	500	0.9	93.4	5.73	1.2	1.15	2.46	4	4.5
320-12/1180	320	10	22.6	500	0.9	91.3	5.79	1.57	1.06	2.69	8	4.2
550-12/1430	550	6	62.9	500	0.9	93.9	4.67	1.03	0.99	2.35	4.9	4.6
250-14/1180	250	6	29	428	0.9	91.6	4.6	1.64	0.77	2.447	5.2	3
250-14/1180	250	10	17.6	428	0.9	91.1	5.98	1.44	1.07	2.7	6	3.7
280-14/1180	280	6	32.7	428	0.9	91.9	4.58	1.57	0.77	2.69	17	3.3
320-14/1430	320	6	37	428	0.9	92.1	4.87	1.06	0.95	2.17	5	4.7
350-14/1180	350	6	41.1	428	0.9	93.1	4.13	1.46	0.7	2.2	9.8	3.4
350-14/1430	350	10	24.7	428	0.9	91.4	4.33	1.6	0.77	2.31	25	4.6
500-14/1730	500	6	57.1	428	0.9	93	4.8	1.27	0.89	2.41	13	5.4
550-14/1430	550	6	63	428	0.9	94	5.46	1.42	1.05	2.23	24	4.9
630-14/1730	630	6	72	428	0.9	93.9	5.17	0.84	1.16	2.29	20	8.5
1000-14/1730	1000	6	113	428	0.9	94.9	4.84	1.23	0.93	2.22	60	9.7
250-16/1430	250	6	29.4	375	0.9	91.5	5.59	1.28	0.99	2.35	10	3.6
250-16/1430	250	10	17.6	375	0.9	91	5.69	2.12	0.9	2.97	50	4.7
450-16/1430	400	6	52	375	0.9	93.5	5.12	1.03	1.03	2.36	13	85
500-16/1430	500	6	57	375	0.9	93.5	5.08	0.99	1.05	2.33	34	72
550-16/1730	550	6	63.2	375	0.9	93.8	4.91	1.34	0.86	2.26	30	95
630-16/1730	630	6	73	375	0.9	93.9	4.56	1.14	0.84	2.03	32	64
630-16/1730	630	6	72	375	0.9	94.1	5.63	0.99	1.18	2.32	55	11.8
630-16/1730	630	10	43.5	375	0.9	93.1	6.56	L65	1.19	2.64		7.2
800-16/1730	800	6	91	375	0.9	94.2	5.32	0.91	1.21	2.06	30	10.3
1000-16/1730	1000	6	116	375	0.9	94.2	5.63	1.39	1.05	2.5	30	22
1250-16/2150	1250	6	141	375	0.9	95	4.69	1.19	0.87	2.15	49	16.1
1250-16/2150	1250	10	85	375	0.9	94.6	5.88	1.06	1.27	2.14	80	73
1500-16/2150	1500	6	169	375	0.9	95.3	5.37	0.92	1.21	2.14	78	16.6
1800-16/2150	1800	6	203	375	9	95.5	5.67	1.09	1.25	1.91	86	14
300-18/1430	300	6	34.7	333	0.9	92.5	6.21	1.35	1.17	2.9	35	8.56
355-18/1430	355	6	41	333	0.9	92.7	6.43	1.45	1.22	2.48	10	6.5
355-18/1430	355	10	25	333	0.9	91.4	4.24	1.45	0.68	2.44	10	7.15
400-18/1430	400	6	46.5	333	0.9	93	6.25	1.36	0.97	2.57	55	11.1
500-18/1430	500	6	58	333	0.9	93.2	4.64	0.96	0.87	2.04	45	11.9
550-18/1730	550	6	62.9	333	0.9	93.8	4.65	1.48	0.79	2.45	29	5.94
710-18/1730	710	6	80.3	333	0.9	94	4.66	1.43	0.79	2.4	35	6.53
800-18/1730	800	6	90	333	0.9	94.5	4.5	0.89	0.91	2.27	35	7
800-18/1730	800	10	54.9	333	0.9	93.7	5.33	1.01	1.1	2.42	40	7.8
1000-18/1730	1000	6	113	333	19	94.5	4.86	0.95	0.9	2.2	39	11
1250-18/2150	1250	6	141	333	0.9	94.7	4.59	1.35	0.791	2.07	92	16.1
1800-18/2150	1800	6	202	333	0.9	95.1	5.3	0.96	1.17	2.11	100	17.5
2500-18/2600	2500	6	280	333	0.9	95.6	5.86	1.56	1.06	2.21	200	25
2800-18/2600	2800	6	313	333	0.9	95.7	5.27	1.34	0.97	2.12	200	27
3000-18/2600	3000	6	334	333	0.9	96	5.72	1.46	1.05	2.16	215	28.3
400-20/1730	400	0	46	300	0.9	93.1	6.14	1.93	1.04	3.09	50	11.9
550-20/2150	550	6	63	300	0.9	93.3	4.79	1.25	0.84	2.32	60	12
550-20/2150	550	10	39	300	0.9	93	4.26	1.08	0.74	2.46	49	11.7
630-20/2150	630	6	73	300	0.9	93.7	5.59	1.01	1.17	2.29	55	11
630-20/2150	630	10	44	300	0.9	93.1	6.19	1.57	1.1	2.77	54	11.8
800-20/2150	800	6	92	300	0.9	94	6.5	0.6	0.6	1.8	74	11
800-20/2150	800	10	55.2	300	0.9	93.7	5	149	0.87	2.4	54	12
1850-16/2150	1850	6	208	375	0.9	95.5	5.6	0.97	1.27	2.1	8	17
2800-16/2150	2800	6	312	375	0.9	94.5	4.9	1.29	0.89	1.93	15	22
2800-16/2600	2800	10	188	375	0.9	95.9	3.6	0.78	0.7	1.85		22
2800-18/2600	2800	10	188	333	0.9	95.9	4.3	0.89	0.9	1.86	15	26
4900-18/2600	4900	6	543	333	0.9	96.7	3.9	0.76	0.82	1.85	30	32
5000-18/2600	5000	6	554	333	0.9	96.7	3.9	0.75	0.81	1.84	30	32
5200-18/2600	5200	10	348	333	0.9	96.4	4.4	0.84	0.94	1.9	25	34
1800-20/2150	1800	6	201	300	0.9	95.6	4.9	1.21	0.92	2.32	116	17
2500-20/2600	2500	10	208	300	0.9	96	4.6	0.76	1.05	2.03	180	27
2900-20/2600	2900	6	325	300	0.9	95.8	4.7	1.1	0.8	2	441	33
3800-20/2600	3800	6	423	300	0.9	96.2	5.2	1	1	2	313	31
3800-20/2600	3800	10	254	300	0.9	96.2	4.4	0.9	0.88	1.95	298	30
4800-20/3250	4800	6	532	300	0.9	96.5	4.3	0.6	0.98	1.8	539	41
4000-22/3250	4000	10	269	273	0.9	95.7	5.3	1.35	0.98	2.15	627	43
4800-22/3250	4800	10	321	273	0.9	95.5	5.4	1.1	1.1	2	588	41
2500-24/2900	2500	6	280	250	0.9	95.6	4.8	0.99	0.98	2.15	372	27
2500-24/2900	2500	10	168	250	0.9	95.5	5.5	1.1	1.1	2.25	392	27
