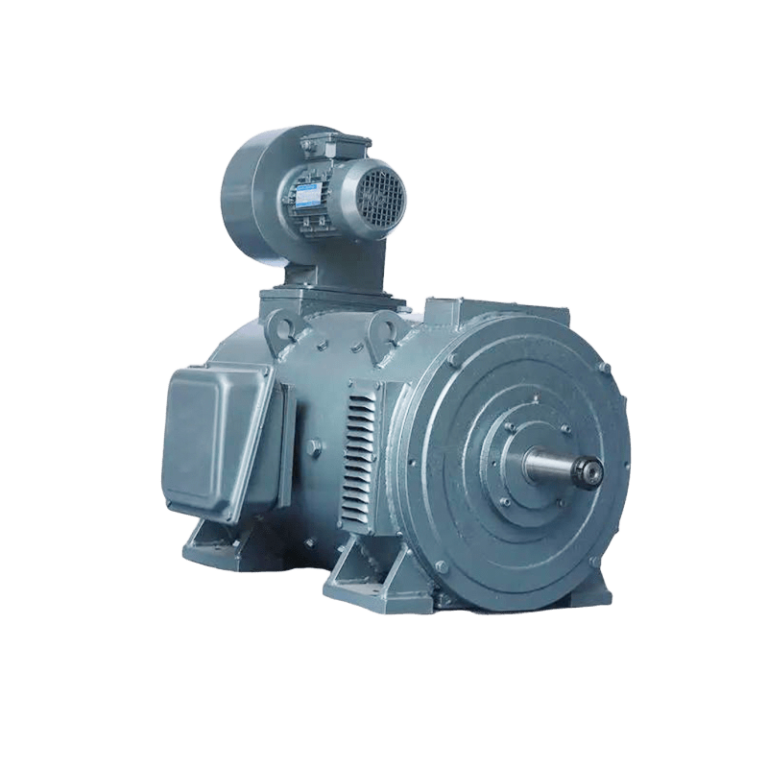

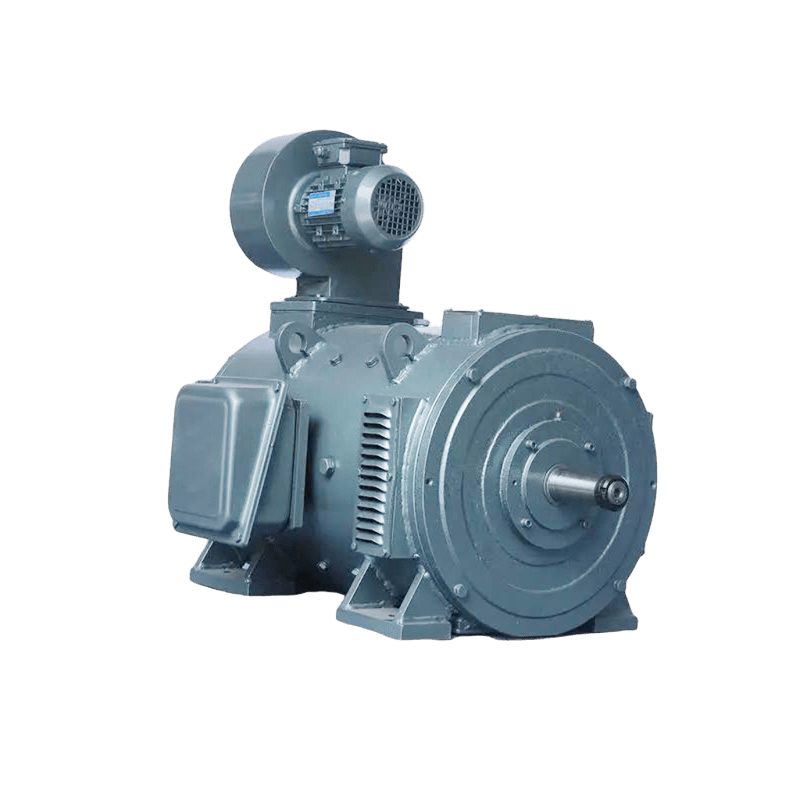

Direct current electric motor for rolling mills, JM-DC-JJ series

Power: 3.75kW-186kW
Voltage: 220V 440V
Frame number: ZZJ802 -ZZJ818
Cooling type: IC06 IC17 IC37 ICW37A86

Request a price

The DC motor for rolling mills is manufactured in accordance with the national standard “Motors for Auxiliary Drives of Rolling Mills” and plays a critical role in the steel industry. This motor is designed to operate in harsh environments, capable of withstanding frequent starts, reversible braking, and high repetitive overload torque. Primary applications include work roller tables, pressing devices, loop tension rollers, shears, tongs, and crane mechanisms.

Motor rating data
Frame number	External ventilation for continuous duty (S1) or fully enclosed design for short-time duty (S2) with a 1-hour rating.						Fully enclosed design with series excitation for short-time duty (S2) with a duration of 30 minutes		Fully enclosed design for intermittent periodic duty (S3) with a load duty cycle of 30% (S3-30%)
	Power	Speed at rated voltage							Series excitation		Compound excitation		Shunt excitation
		Series excitation	Compound excitation	Shunt excitation, separately excited	Shunt and separately excited motor for speed regulation (weak field regulation)		Power	Speed at rated voltage	Power	Speed	Power	Speed	Power	Speed
		Series excitation	Compound excitation	Shunt excitation, separately excited	220V	440V	Power	Speed at rated voltage	Power	Speed	Power	Speed	Power	Speed
802A	3.75	900	1025	1025	1025/2050	1025/2050	5	750	4.1	840	3.75	1080	3.75	1130
802B	5.6	800	900	900	900/1800	900/1800	7.5	675	6	780	5.6	950	5.6	1000
802C	7.5	800	900	900	900/1800	900/1800	10	675	7.5	800	7.1	940	6.7	1000
803	11.2	725	800	800	800/2000	800/1600	14.1	620	11.2	725	10.8	840	10.5	880
804	15	650	725	725	725/1800	725/1450	19.5	580	15	650	13.8	775	12.7	800
806	22.4	575	650	650	650/1950	650/1300	29	500	22.4	575	21.2	690	18.8	715
808	37.3	525	575	575	575/1725	575/1150	48.5	450	30	570	28	625	26	830
810	52	500	550	550	500/1650	550/1100	67	440	45	550	39	615	33.5	600
812	75	475	515	515	515/1330	515/1050	100	420	63.5	525	56	580	45	565
814	112	460	500	500	500/1250	500/1000	149	400	86	515	82	586	83.5	560
816	150	450	480	480	480/1200	480/960	200	400	112	500	104	540	82	535
818	186	410	435	435	435/1100	435/870	243	360	138	485	123	490	97	470
820	280	370	390	390	390/975
822	370	340	360	360	360/900
824	500	320	340	340	340/850

Notes:
1. The 802 frame number comes in three specifications: the motor installation dimensions are identical, but the electromagnetic design varies.
2. Frame numbers 820, 822, and 824 refer to prototype product specifications.
3. To achieve the speed regulation range of the motor, a small number of series winding turns is permitted.
4. The voltage of any motor in this series can be made as 220V or 440V. However, for separately excited and shunt excited motors, the voltage is 220V. Intermittent periodic duty (S3) indicates that within a 5-minute cycle, the load time is 1.5 minutes, and the non-energized time is 3.5 minutes. However, the excitation field coils for separate and shunt excitation remain continuously energized.
5. For a fully enclosed motor with an hourly duty cycle or 30-minute duty cycle (S2), no voltage is applied to any windings when the load is removed.
6. The maximum safe speed is the highest speed at which the motor can operate safely from a mechanical standpoint.

Airflow rate for continuous duty with external ventilation, m³/s.	Max Locked-rotor torque N.m			Maximum operating torque, N·m			Moment of inertia Kg.m2	Maximum safe speed, r/min	Weight kg
	Series excitation	Compound excitation	Shunt excitation	Series excitation	Compound excitation	Shunt excitation	Moment of inertia Kg.m2	Maximum safe speed, r/min	Weight kg
0.052	198	157	126	158	123	102	0.125	3600	245
0.052	330	270	216	268	210	177	0.188	3600	260
0.076	450	360	237	360	280	220	0.188	3600	260
0.094	740	610	400	600	470	360	0.45	3300	390
0.12	1100	880	590	880	685	530	0.75	3000	550
0.16	1870	1500	980	1490	1170	880	1.4	2600	770
0.2	3400	2800	1860	2700	2150	1650	2.15	2300	1200
0.25	5000	4000	2700	4000	3100	2450	3.15	2200	1400
0.35	7450	6250	4150	6000	4900	3750	5.75	1900	1700
0.42	11600	9600	6400	9300	7500	5800	9.75	1700	2300
0.57	16000	13300	8900	12600	10400	8000	14.5	1600	2785
0.75	21700	18400	12300	17400	14400	11000	22	1500	3700
1.7	36100	30850	20570	28900	24000	18500	52.5	1300	4800
2.1	51960	44160	29440	41570	34350	26500	92.5	1200	6300
2.6	74600	63200	42100	59700	49100	37900	160	1100	8200
