Excitation type: separately excited
Power: 1000kW
Speed: 1200/1500rpm
Rated voltage: 750V
Rated current: 1410A
Class of insulation: Class H
Excitation voltage: 315V
Excitation current: 17A
Duty type: S1
Mounting type: IM1001
Cooling type: IC666
Speed feedback device: optical encoder on the non-rotating end of the motor (Germany, P+F)
Voltage: DC12V
Pulse count: 1024 per revolution

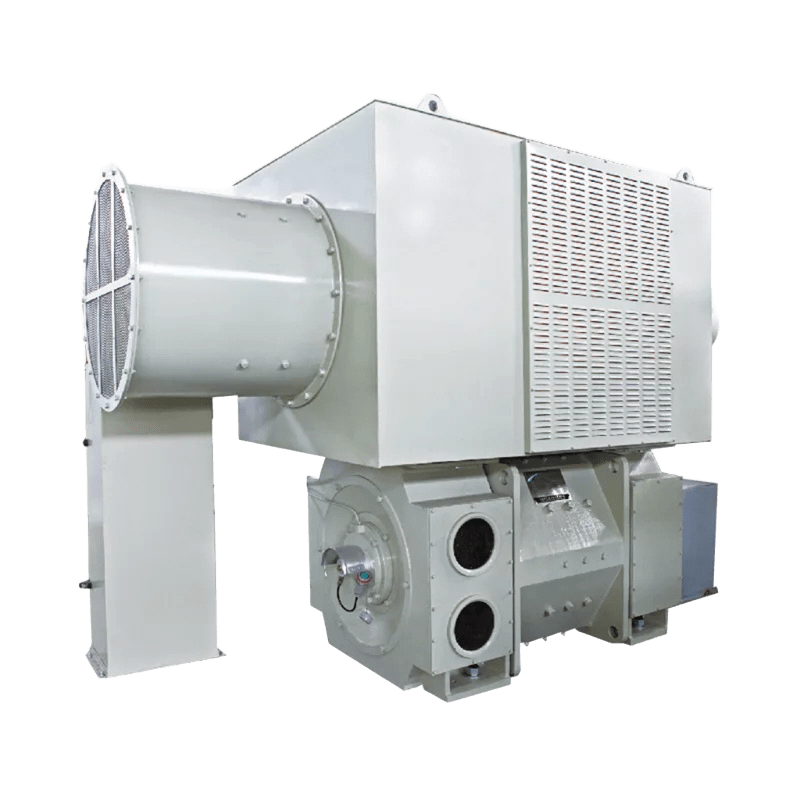

The DC motor is designed for medium and deep well drilling, delivering 1000 kW of reliable power. It features a compact design, high torque, and a wide speed adjustment range for demanding conditions.
Advanced insulation materials and Vacuum Pressure Impregnation (VPI) technology provide excellent moisture resistance and durability. Imported bearings ensure long service life and easy maintenance.
Technical specifications of the equipment are available upon request.
